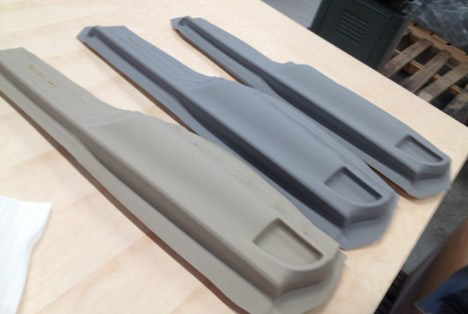

Our in-house MAAC 75s vacuum forming machine is available for trials and low volume production.
About Our Machine:
- Platen/Mold Size 84” x 60”
- Clamp Frame Opening 86” x 62”
- Top Platen Stroke 36”, Bottom Platen Stroke 70”
- Top & Bottom Platen “Daylight” 6”
- Sheet-Line 100”
- Pressure Assist Capability 30 PSI
- Platen Weight 3,500 lbs @ 12 IPS (inches per second) or 7,000 lbs @ 6 IPS
- Material Sheet Size 88” x 64”
- Pre-programming of forming techniques
- Quartz Oven: Lower 54 zones, Upper 110 zones & 1 Infrared Heat Sensor
- Forming Functions – Both Top & Bottom:
- Vacuum
- Plug Assist
- Billow Cavity Mold
- Snap Back
- Billow Male Mold
- Vacuum System equipped with:
- 3, 2” Vacuum Valves
- 3, 2” Ball Valves – Servo Controlled – Platen Position & Time
- 4, 1” Air Valves
- 4, 1” Ball Valves – Servo Controlled – Platen Position & Time
- 2, 35 Gallon per Minute Water Heaters/Pumps
- Platen motors equipped with absolute encoders for position & speed control
Other Machines for Trails and Production:
Haco Atlantic Press Brake Specs:
- Capacity = 75 T
- Maximum working pressure = 280 BAR
- Chamfering Length = 3600 mm
- Distance between side standards = 3150 mm
- Unloading = 450 mm
- Course = 200 mm
- Multiple bend radiuses available
Large Oven Capabilities:
- Oven temp will range to 550° F
Small Oven / Curing Oven Capabilities:
- Oven temp will range to 180° F
Past Projects
- Electroformed Nickel Slush Tool for the Automotive Industry
- In-Mold Grain Lamination (IMGL) Vacuum Form Tool for the Automotive Industry
- CNC Milling of a Grille Radiator Lower Check Fixture for the Automotive Industry
